ALL
MHz SMD Crystals
MHz Thru Hole Crystals
KHz SMD Crystals
KHz Thru Hole Crystals
MHz Crystal Filter
| Image | Description and Main Parameters | Part Series Code | Dimension | Original Part Number | Documents | |
|---|---|---|---|---|---|---|
|
MHz SMD Crystal, 4 Pads6.000~150.000MHz | XB | L7.0*W5.0*H1.1mm | CM75 | Data Sheet | View Inventory |
|
MHz SMD Crystal, Glass Seal, 4 Pads10.00~54.000MHz | XE | L3.2*W2.5*H0.8mm | CMG32 | Data Sheet | View Inventory |
|
|
MHz SMD Crystal, Glass Seal, 4 Pads12.00~64.000MHz | QA | L2.5*W2.0*H0.75mm | CMG22 | Data Sheet | View Inventory |
|
|
MHz SMD Crystal, Glass Seal, 4 Pads8.00~80.000MHz | QF | L5.0*W3.2*H1.4mm | CMG53 | Data Sheet | View Inventory |
|
MHz SMD Crystal, Glass Seal, 2 Pads8.00~80.000MHz | XW | L8.0*W4.5*H1.5mm | CMG842 | Data Sheet | View Inventory |
|
MHz SMD Crystal, 2 Pads 7.000~50.0MHz | XQ | L6.0*W3.5*H1.0mm | CM632 | Data Sheet | View Inventory |
|
MHz SMD Crystal, 2 Pads 8.000~150.0MHz | XO | L5.0*W3.2*H1.2mm | CM532 | Data Sheet | View Inventory |
|
21.400MHz SMD, Ripple : 1.5dB Max. | FS | L27.0*W18.0*H13.0mm | MCF FS271-21.4M25KD | Data Sheet | View Inventory |
|
21.400MHz SMD, 6 pads 4 pole, Ripple : 2.0dB Max. | FW | L7.0*W5.0*H1.30 mm | MCF 75 21.4M4A | Data Sheet | View Inventory |
|

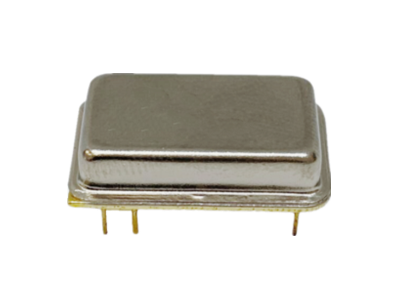

70.00MHz Thru Hole, 4 pin Ripple 1.5dB Max. | FY | L25.1*W14.1*H10.0mm | MCF F240 70M25KC | Data Sheet | View Inventory |
|
21.400MHz Thru Hole 4 pin Ripple : 2.0dB Max. | FX | L38.0*W19.0*H13.0mm | MCF F155-21.4M250B | Data Sheet | View Inventory |
|
MHz SMD Crystal, Glass Seal, 6035, 2 Pads8.00~48.000MHz | XP | L6.0*W3.5*H1.2mm | CMG632 | Data Sheet | View Inventory |
|
KHz SMD Crystal, 2 Pads32.768KHz | YL | L4.1*W1.5*H0.90mm | CCMJ | Data Sheet | View Inventory |
|
KHz SMD Crystal, 2 Pads32.768KHz+/-20PPM, 12.5pF | YU | L7.00*W3.15*H2.30mm | CCMU | Data Sheet | View Inventory |
|

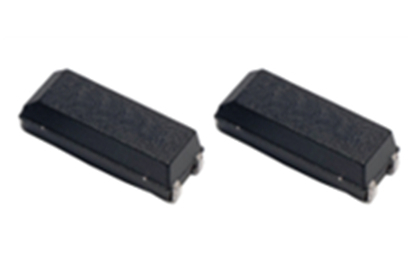

KHz SMD Crystal, Plastic Case, 4 Pads32.768KHz Standard, Pad 1/Pad 4 Connection | YK | L10.41*W4.06*H3.56mm | CCMK | Data Sheet | View Inventory |
|
KHz SMD Crystal, Plastic Case, 4 Pads32.768KHz Standard, | YF | L10.41*W4.06*H3.56mm | CCMF | Data Sheet | View Inventory |
|
KHz Thru Hole Crystals, 2 pins32.768KHz | YE | Ø1.2*L4.2mm | CCE | Data Sheet | View Inventory |
|
|

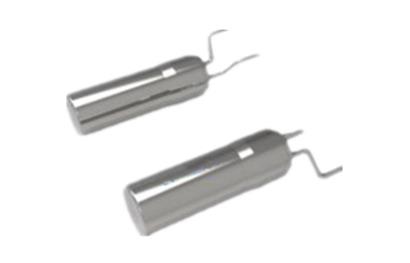

KHz Thru Hole Crystals, 2 pins32.768KHz Standard, 30.00~200.00KHz | YA | Ø2.0*L6.0mm | CCA | Data Sheet | View Inventory |
|
KHz SMD Crystal, Lead Formed, with Metal Lid, 2 Pins32.768KHz standard, 30.000~200.00KHz | YN | Ø2.0*L6.0mm | CCMA | Data Sheet | View Inventory |
|
KHz SMD Crystal, Lead Formed, 2 Pins32.768KHz standard, 30.000~200.00KHz | YM | Ø2.0*L6.0mm | CCMB | Data Sheet | View Inventory |
|
KHz SMD Crystal, 2 Pads32.768KHz, 7pF, 9pF, 12.5pF option | YV | L1.6*W1.0*H0.50mm | CCMV | Data Sheet | View Inventory |
|
|
KHz SMD Crystal, 2 Pads32.768KHz | YS | L2.0*W1.2*H0.6mm | CCMS | Data Sheet | View Inventory |
|
|
KHz SMD Crystal, 2 Pads32.768KHz | YR | L3.2*W1.5*H0.80 | CCMM | Data Sheet | View Inventory |
|
KHz SMD Crystal, Plastic Case, 4 Pads32.768KHz | YT | L7.0*W1.5*H1.4mm | CCMN | Data Sheet | View Inventory |
|
Quartz Crystals, 3*8, 2 Pins4.00~60.00MHz | YD | Ø3.1*L8.3mm | CCD | Data Sheet | View Inventory |
|
|
Quartz Crystals, 2*6, 2 Pins4.00~60.00MHz | YC | Ø2.0*L6.0mm | CCC | Data Sheet | View Inventory |
|
Quartz Crystals, 49SS, 2 Pins3.00~100.00MHz | XJ | L11.05*W4.7H*3.0mm | CSS | Data Sheet | View Inventory |
|
MHz SMD Crystal, Glass Seal, 2 Pads8.00~48.000MHz | XR | L5.0*W3.2*H1.2mm | CMG532 | Data Sheet | View Inventory |
|
MHz SMD Crystal, Plastic Case, 4 Pads3.50~70.000MHz | YQ | L12.5*W4.6*H3.7mm | CCME | Data Sheet | View Inventory |
|
MHz SMD Crystal, 49SMD, 4 Pads3.50~100.000MHz | XA | L12.0*W4.7*H4.8mm | CSM4 | Data Sheet | View Inventory |
|
MHz SMD Crystal, 49SMD, 3 Pads3.00~100.000MHz | XL | L13.3*W4.7*H4.0mm | CSM3 | Data Sheet | View Inventory |
|
MHz SMD Crystal, 49SSMD, 2 Pads3.000~150.000MHz | XK | L11.5*W4.7*W3.0mm | CSSM2 | Data Sheet | View Inventory |
|
MHz SMD Crystal, 49SMD, 2 Pads3.000~150.000MHz | XM | L11.5*W4.7*W4.0mm | CSM2 | Data Sheet | View Inventory |
|
MHz SMD Crystal, 4 Pads12.000~66.000MHz | XI | L2.5*W2.0*H0.55mm | CM22 | Data Sheet | View Inventory |
|
|
MHz SMD Crystal, 4 Pads7.000~50.000MHz | XC | L6.0*W3.5*H1.0mm | CM63 | Data Sheet | View Inventory |
|
|
MHz SMD Crystal, 4 Pads8.000~150.000MHz | XD | L5.0*W3.2*H1.00mm | CM53 | Data Sheet | View Inventory |
|
|
MHz SMD Crystal, 4 Pads8.000~125.000MHz | XF | L3.2*W2.5*H0.70mm | CM32 | Data Sheet | View Inventory |
|
MHz SMD Crystals, 4 Pads 26.00~96.00MHz | XZ | L1.2*W1.0*H0.33mm | CM12 | Data Sheet | View Inventory |
|
|
KHz Thru Hole Crystals, 2 pins32.768KHz Standard, 30.00~200.00KHz | YB | Ø3.1*L8.3mm | CCB | Data Sheet | View Inventory |
|
KHz SMD Crystal, Plastic Case, 4 Pads32.768KHz Standard, 30.00~20.00KHz | YP | L8.0*W3.8*H2.4mm | CCMC | Data Sheet | View Inventory |
|
|
Quartz Crystals, 49S, 2 Pins3.00~100.00MHz | XS | L11.05*W4.7H*4.0mm | CS | Data Sheet | View Inventory |
|
MHz SMD Crystal, 4 Pads24.000~96.00MHz | XY | L1.6*W1.2*H0.40mm | CM11 | Data Sheet | View Inventory |
|
|
MHz SMD Crystal, 4 Pads16.000~54.000MHz | XV | L2.0*W1.6*H0.46mm | CM21 | Data Sheet | View Inventory |
